●Product Process

The shell is made of high-strength aluminum alloy by one-time die-casting, and the surface is high-pressure electrostatic spray-painted after high-speed shot blasting. The shell structure is compact and reasonable, the material density is high, the explosion-proof performance is excellent, the surface plastic powder adhesion is strong, the corrosion resistance is good, the surface is smooth, beautiful and elegant.

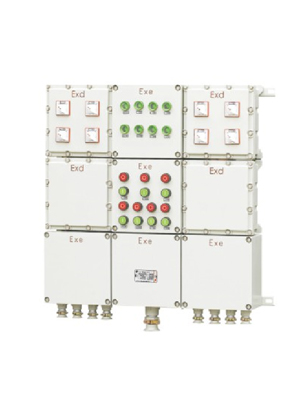

●Module structure

This product is a compound modular structure, the switch cavity is flameproof, the Busbar cavity and wiring cavity are of increased safety type, and each circuit can be freely combined according to user requirements.

●Built-in component module structure

Built-in components can be equipped according to user requirements

●Products can be customized

Can be customized according to user requirements.

●Operation methodIt

It can be operated on the front of the box or remotely, or from both locations.

●Protection function

With overload, short circuit, loss of voltage protection.

●Function

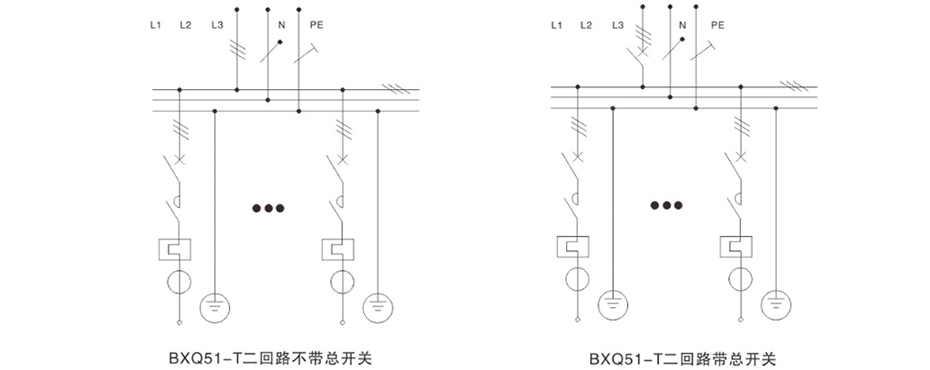

It is suitable for controlling multiple motors, each branch is equipped with circuit breaker protection, and it can also be equipped with power for lighting or instruments.

●Input and output

Input: 3P+N+PE, output: 3P+N+PE

●Application

Steel pipes, explosion-proof flexible pipes, explosion-proof cables, and wiring are acceptable.
